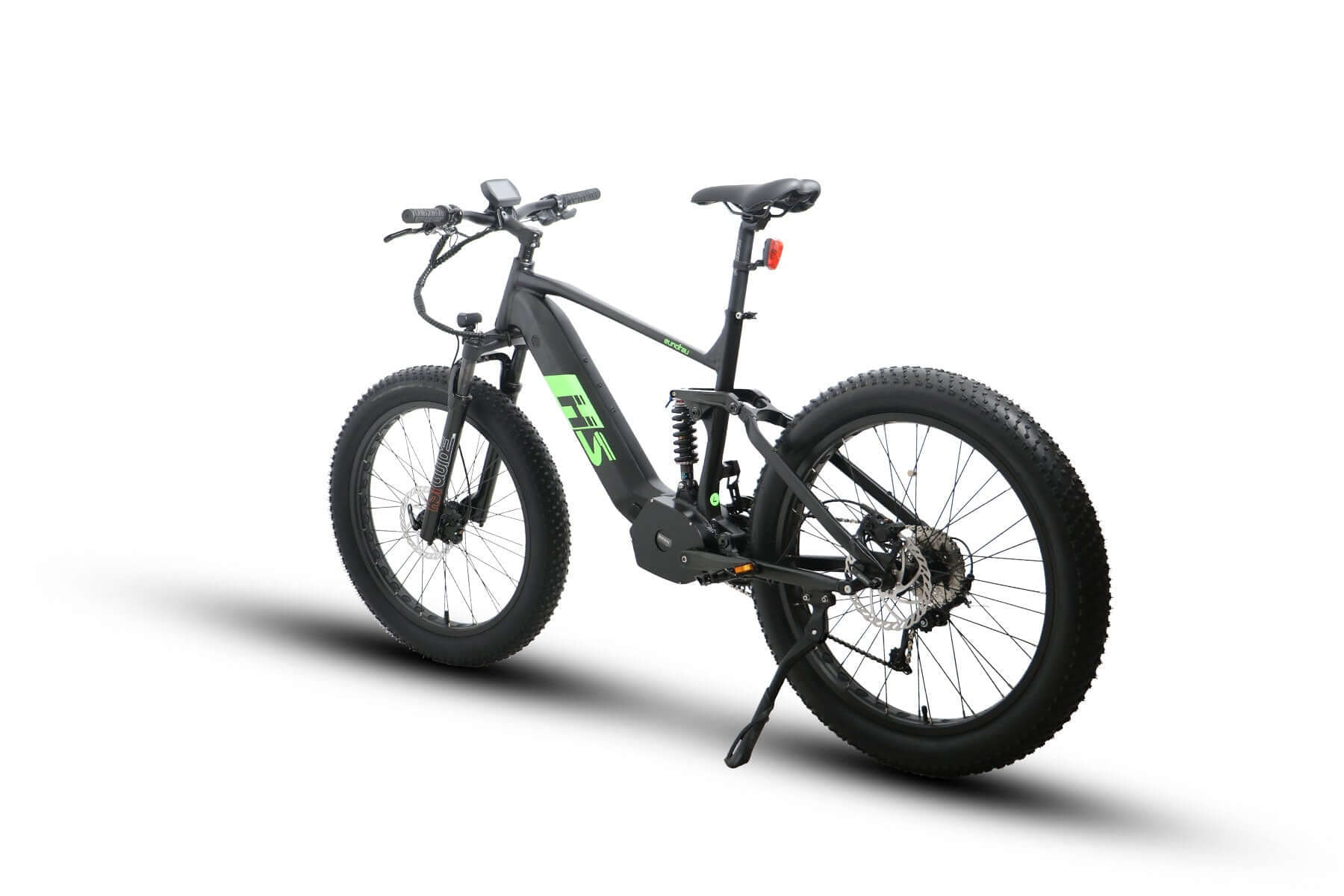

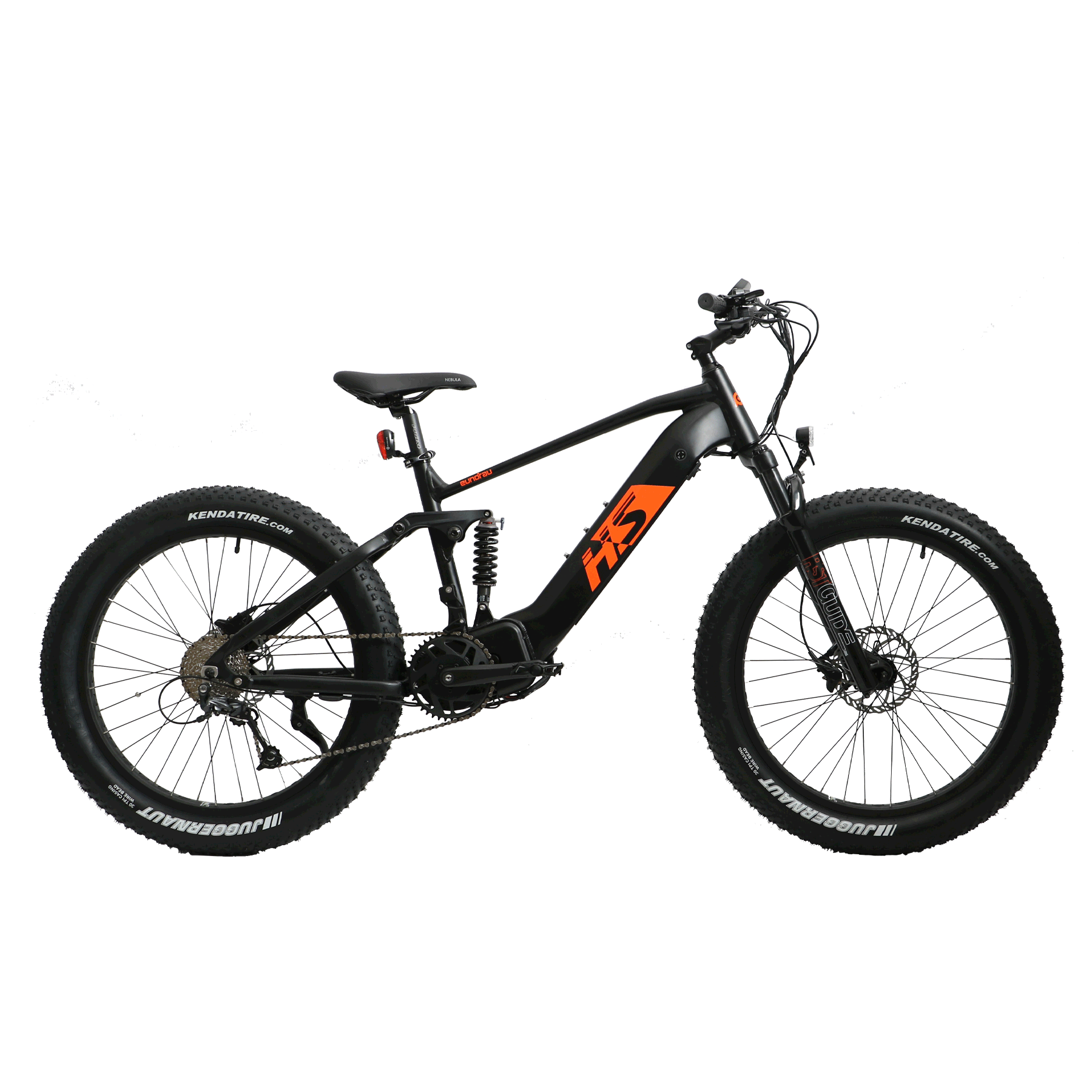

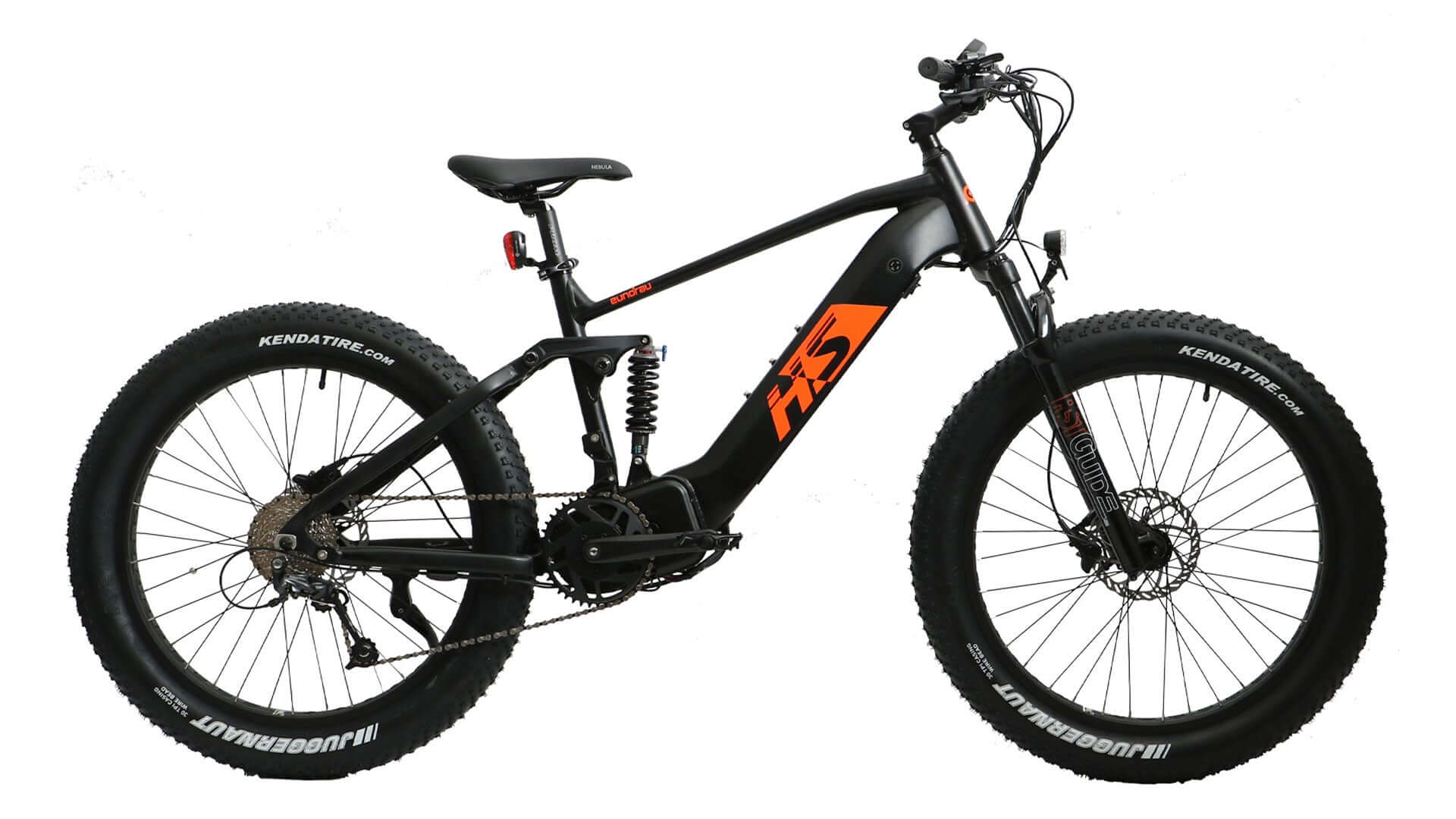

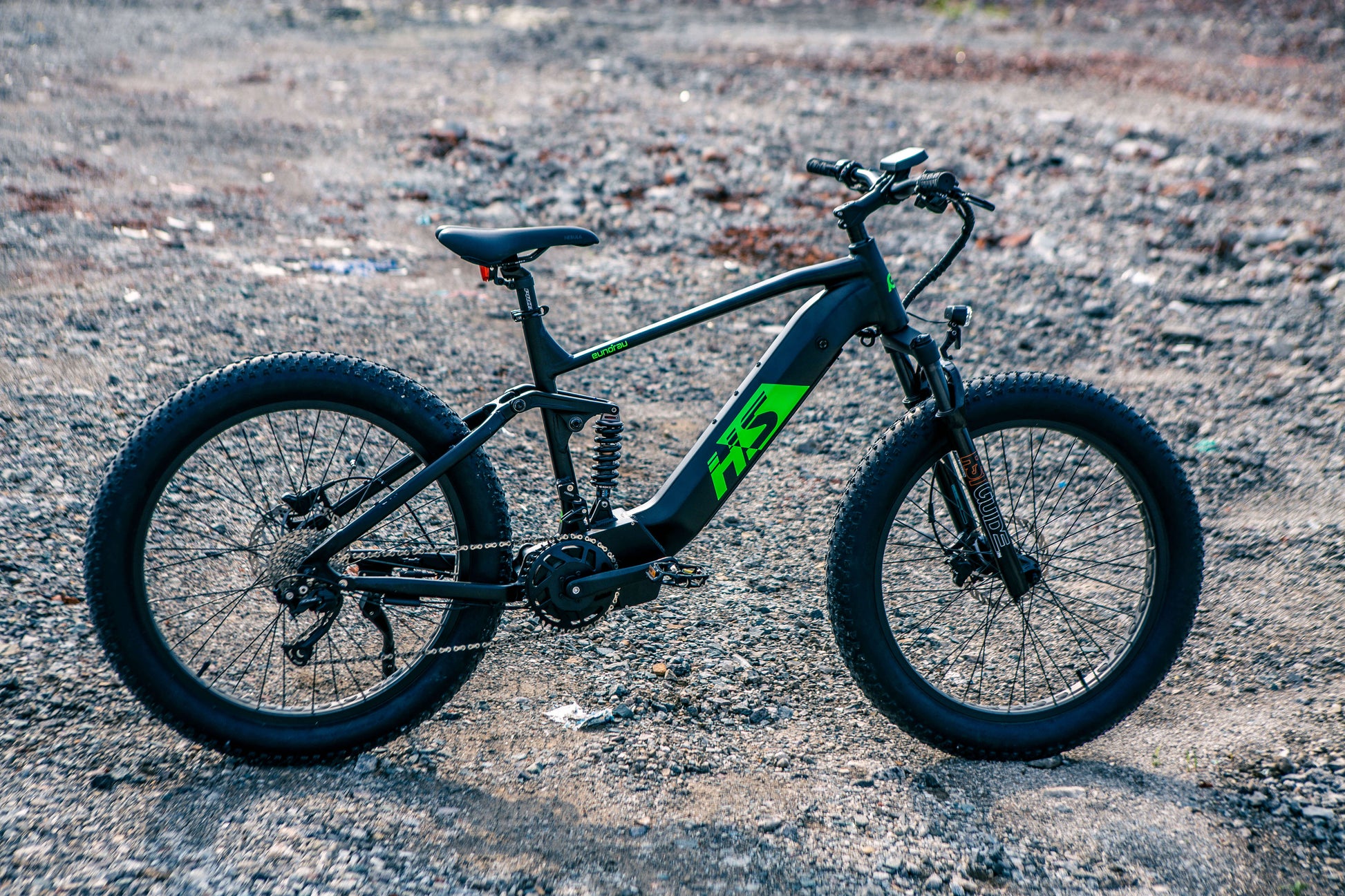

With the Fat-HS by Eunorau you get dual suspension, an overpowered mid-drive motor, and an Ebike perfectly capable of carrying staunch adventurers back to nature. Don't worry about hauling this bike to the trails - it's perfectly suited to riding there! With it’s mid-drive motor utilizing the gearing of the bike for either extra torque or extra speed, you can tackle extremely steep hills, deep mud, snow or sand. Plan on towing a trailer with extra gear? You could most definitely do with the FAT-HS.

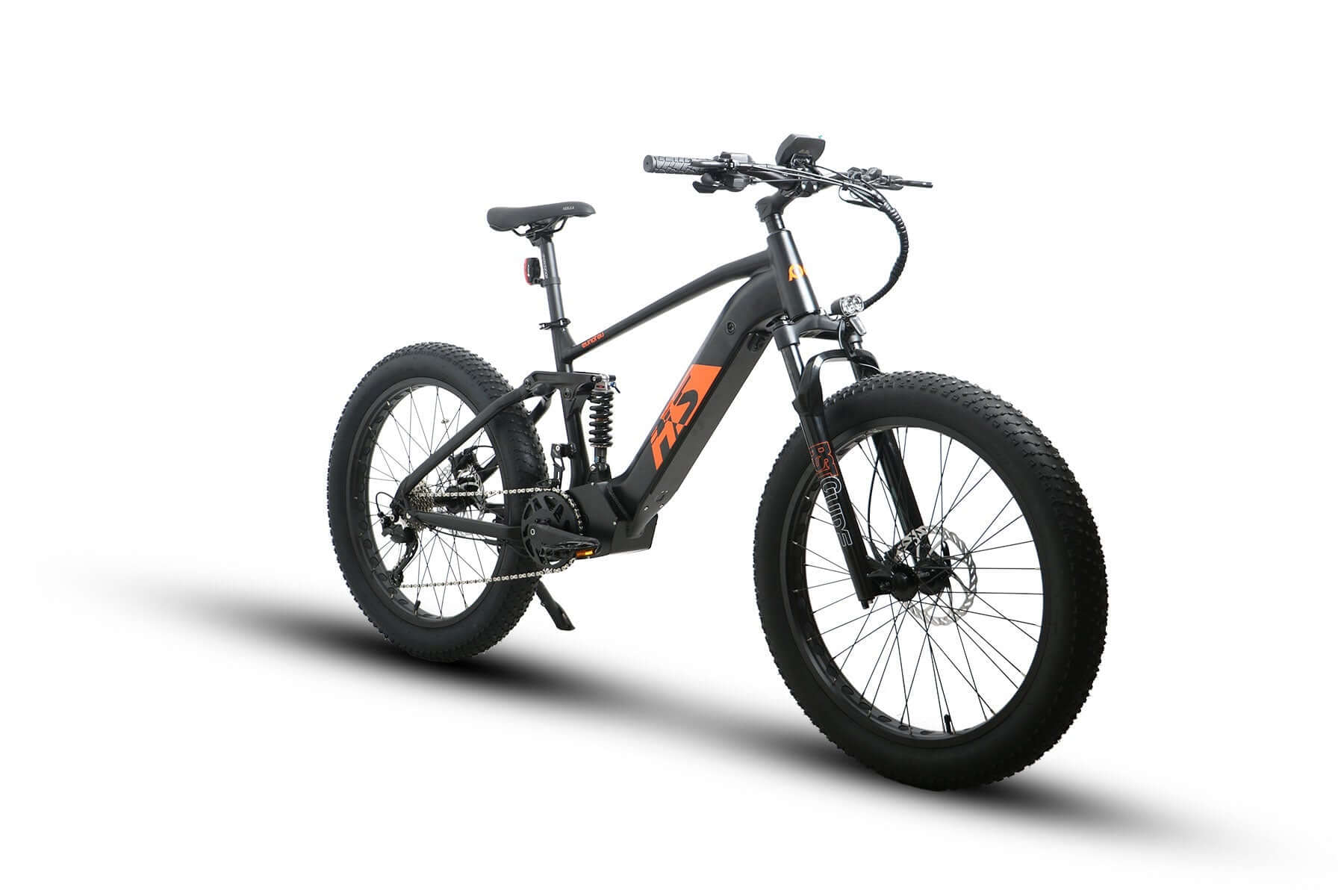

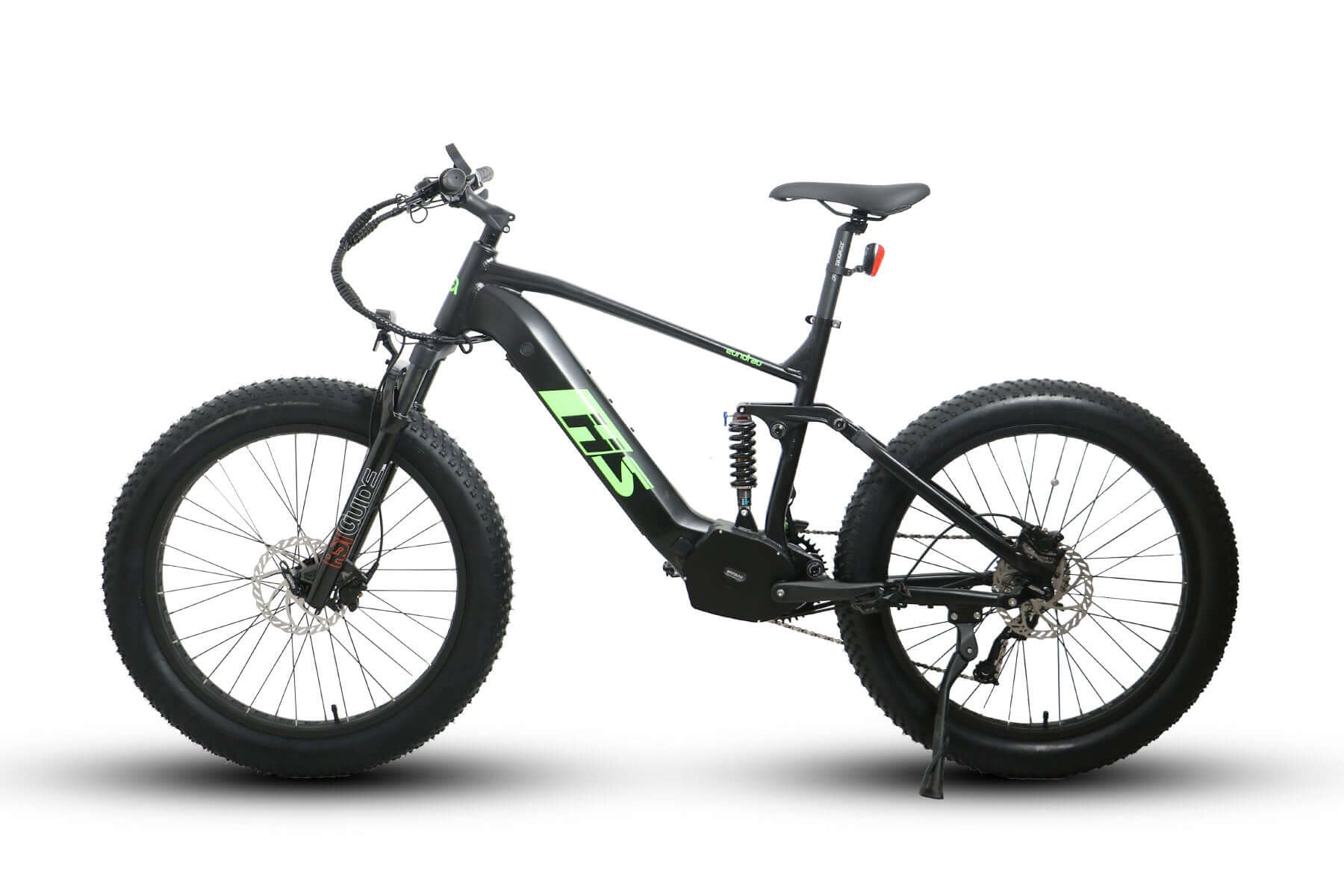

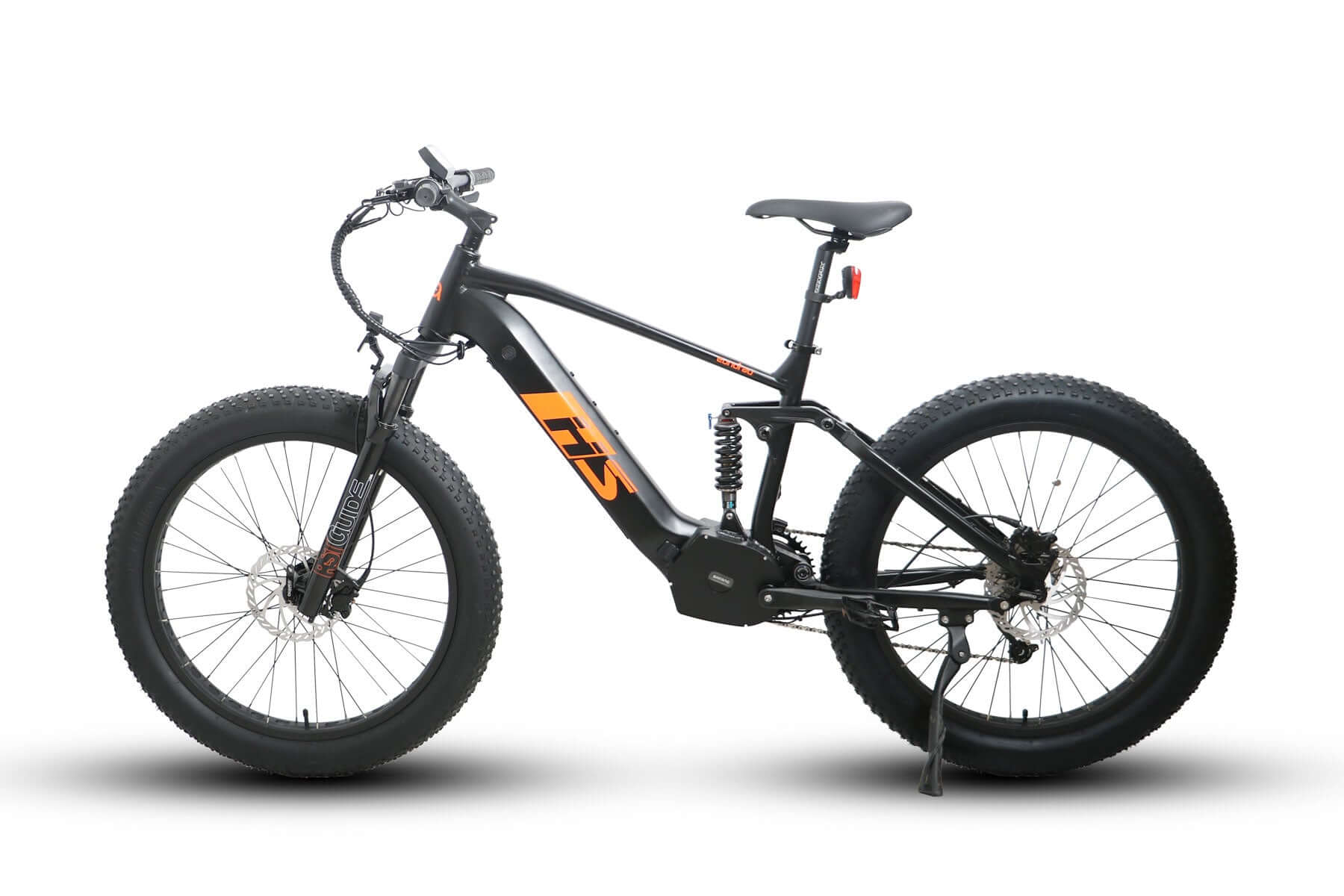

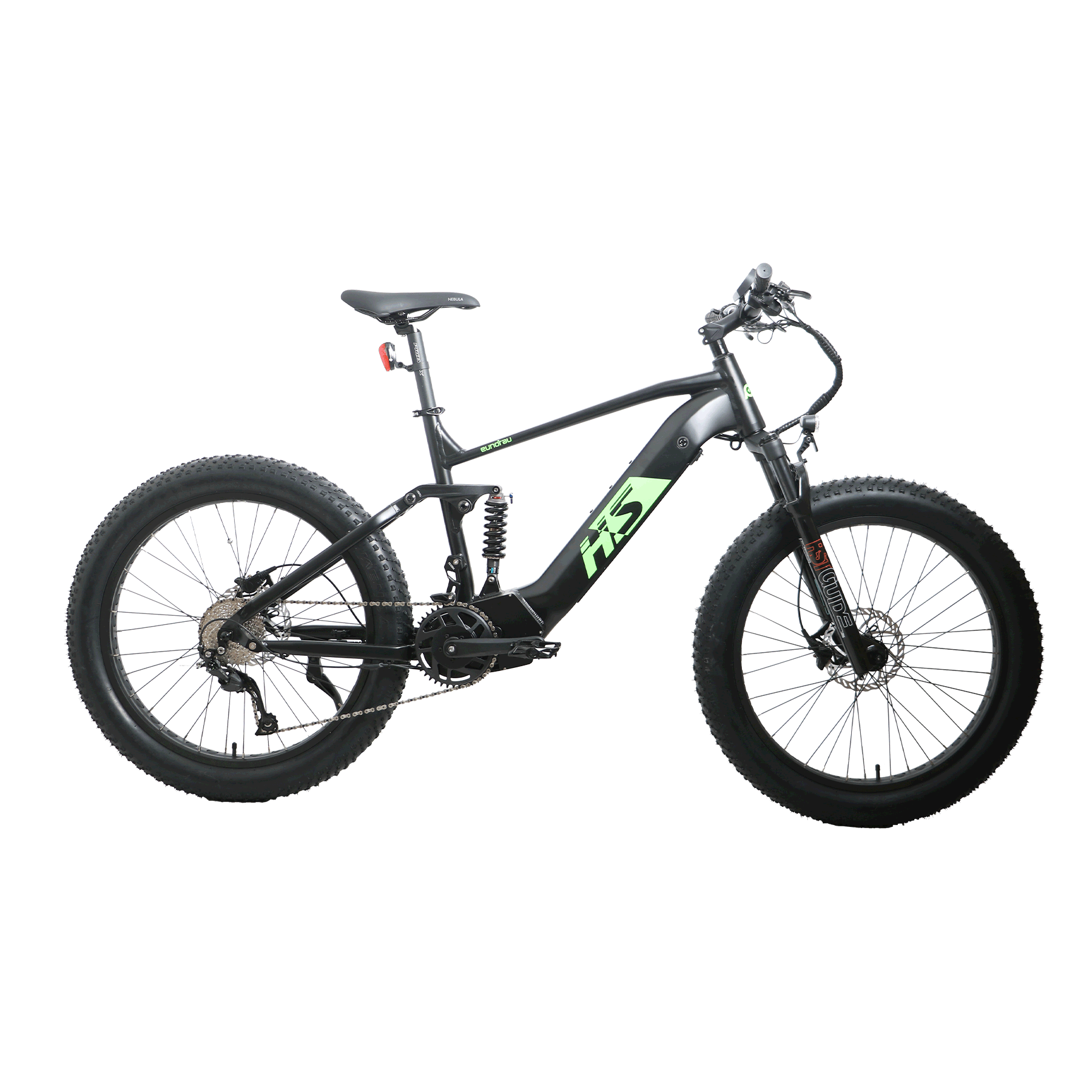

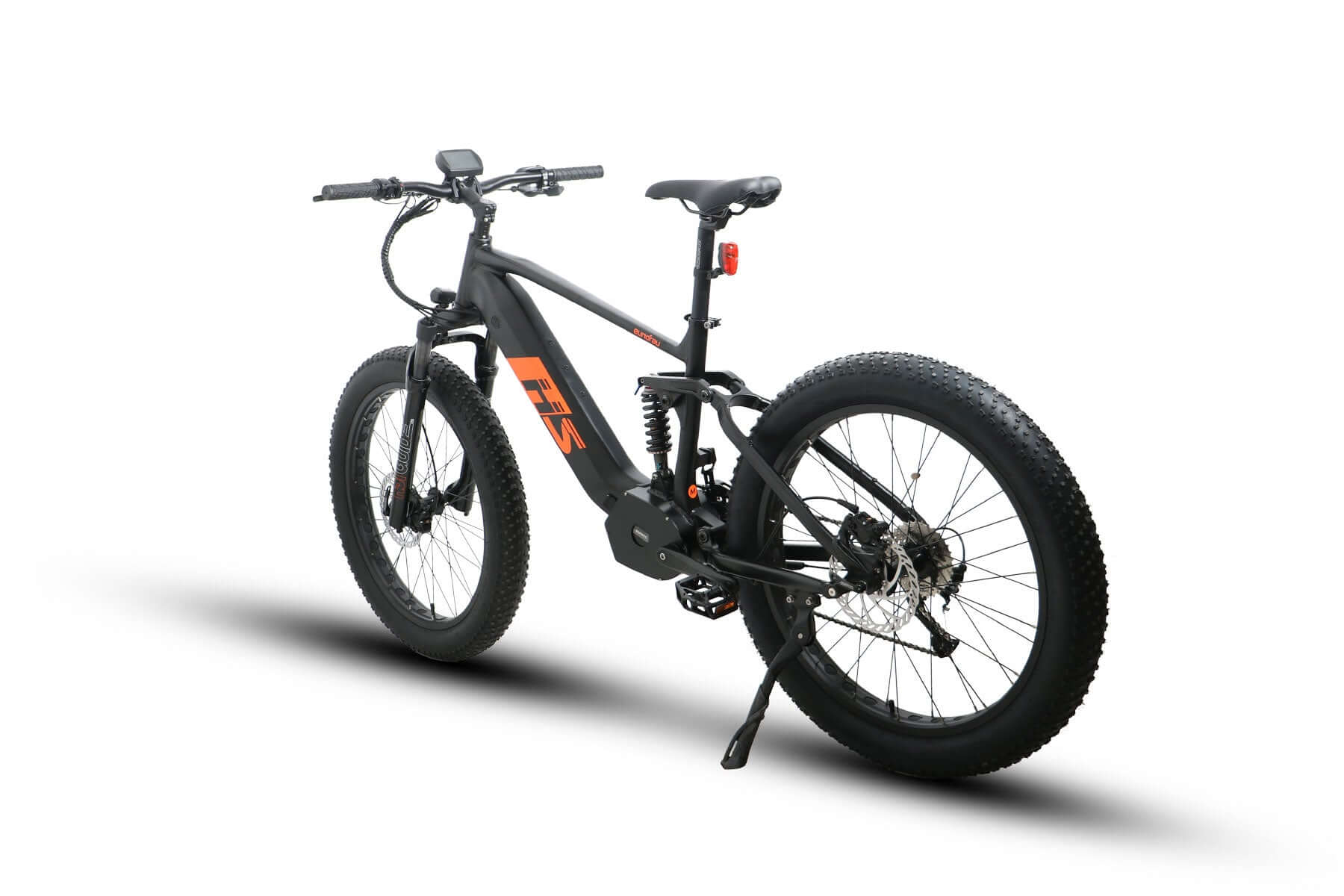

Note: 17" frame version has red markings and 19" has green

Specification

• Battery: 48V15Ah Standard+Optional Second Battery 14/17Ah
• Range: 80 Miles (48V17Ah SAMSUNG Cells + Second Battery 17Ah)
• Motor: 48V1000W Bafang M615 mid motor with 160 N.m torque
• Total Payload Capacity: 300 lbs
• Recommended Rider Heights: 5'3" ~ 6'4"
• Maximum Speed: 28 MPH
• Charger: US standard 2.0 A smart charger
• Controller: 48V
• Display: CDC6 LCD Display
• Weight: 77.1 lbs
• Pedal Assist Intelligent: 0~5 level pedal assist
• Box Dimensions: (cm) 172 L x 36 W x 85 H
• * Note: The second 17ah battery is not compatible with 17" FAT-HS; To utilize the 17Ah second battery on the 19" FAT-HS, it's necessary to lock out the rear shock.

Components

• Tires: Kenda Tires 26" x 4.0"
• Brake lever: Hydraulic disc Brakes Levers with motor cutoff switch
• Rear Light: Taillight
• Shifter: SHIMANO ALTUS/SUNRACE RDM91 - 9 speed gear shift system
• Brake Rotor: EUNORAU Design 180MM Hydraulic Disc Brakes
• Throttle: Thumb throttle
• Stem: EUNORAU TDS-D507G-8FOV
• Crank: 170mm forged alloy
• Cassette: Shimano- 11-34T
• Front Fork: RST GUIDE 75mm Travel
• Rear Shock: KS-388RL,48mm
• Pedal: Nylon pedal with reflectors
• Frame: Aluminum Alloy 6061 Full Suspension
• Front Light: 6-60V LED light
• Saddle: Selle Royal Saddle, Height to Ground 34"-43.3"
• Tool: Included
• Chainring: 42T 7075 CNC chain-wheel crank
• Rims: 26 inch Black Alloy wheels

Geometry

Benefits

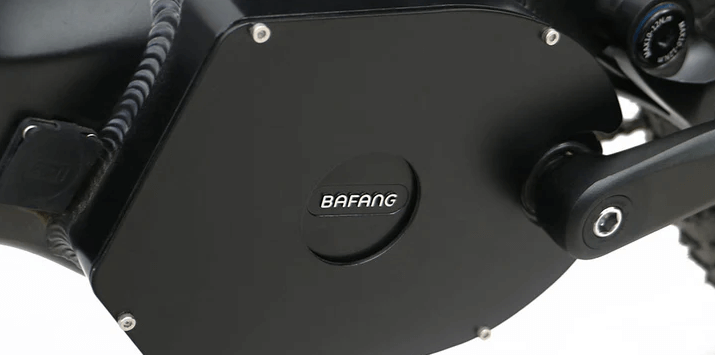

• The FAT-HS has a Bafang mid-drive motor with 1000 nominal watts of power and a whopping 160 Newton meters of torque, for a max speed of 48 km/h. This motor feels every bit as powerful as it sounds, and because it’s a mid-drive it’s also able to utilize the gearing of the bike for either extra torque or extra speed, depending on what gear you’re in. This is a feat that hub drives simply cannot do. It’s also something you absolutely want if you plan on tackling extremely steep hills, deep mud, snow or sand, or if you plan on towing a trailer with extra gear, which is something you could most definitely do with the FAT-HS.

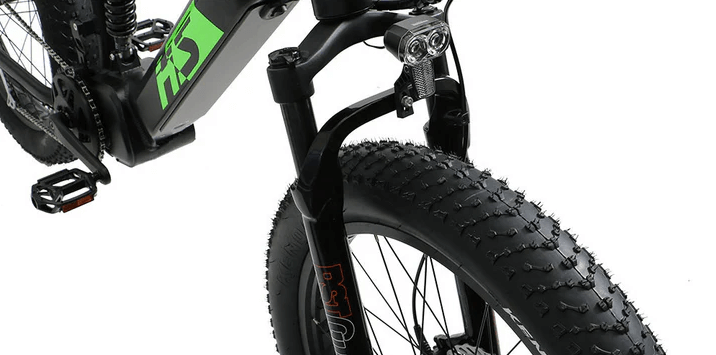

• Absorbing a lot of jarring bumps and shocks on rugged routes, the RST frons suspension fork helps maintain your energy, helping you focus on riding better and faster.

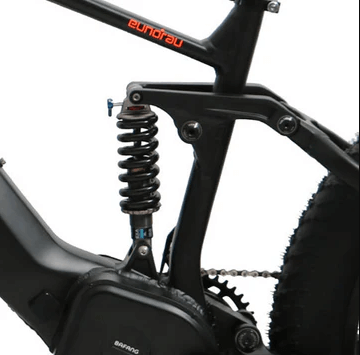

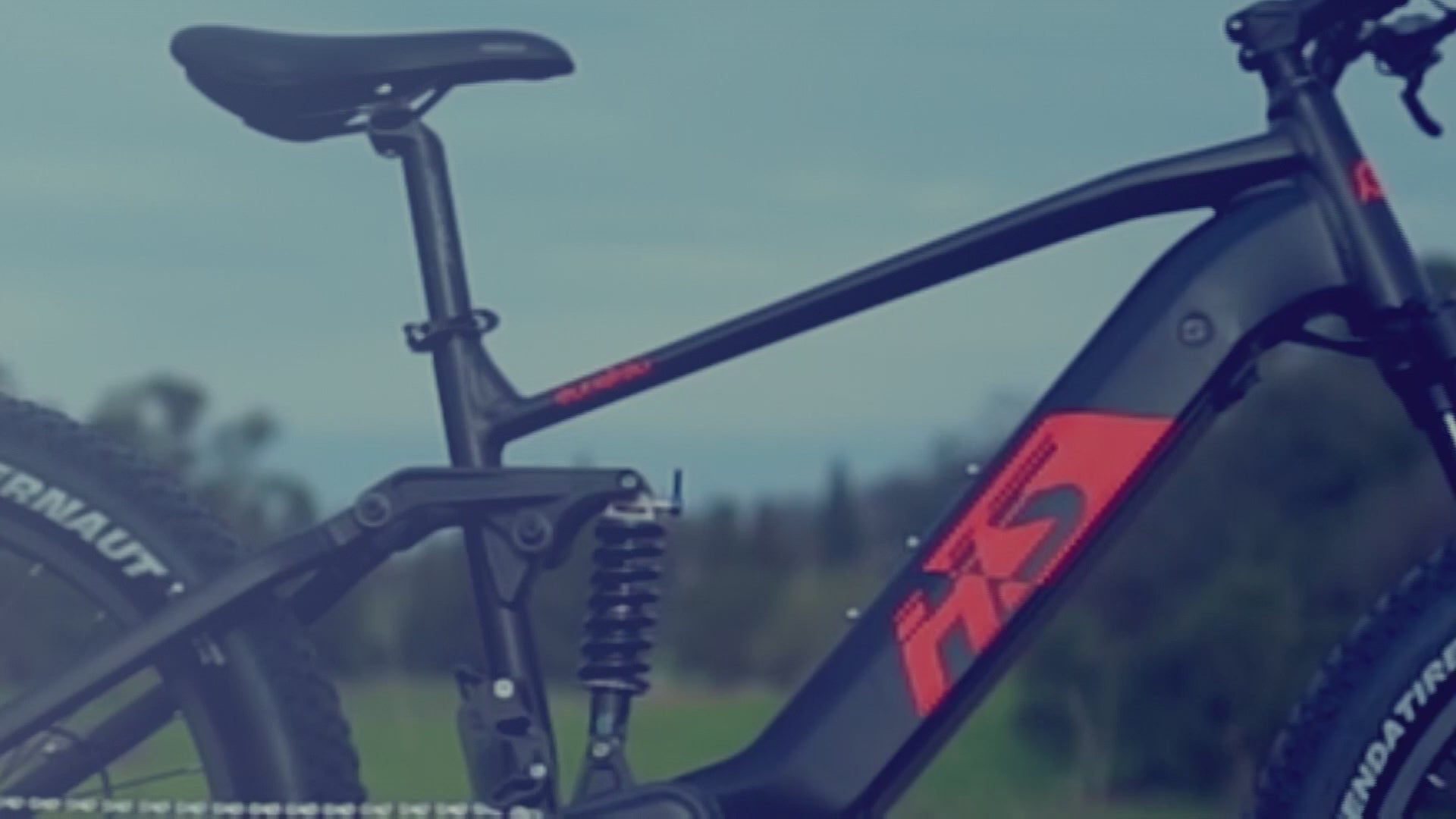

• The rear suspension sets the FAT-HS apart from the rest of our lineup, making it the ultimate eBike. Take on any trail with maximum comfort and control.

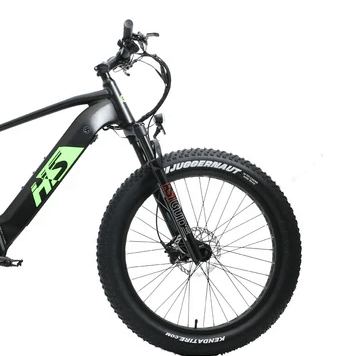

• 26"x4" Kenda Krusade Sport fat tires provide upgraded grip and traction on rugged roads. Whether you're up against sand, mud or snow, these tyres will handle it with ease. The EUNORAU FAT-HS is ready for all-season, all-terrain riding.

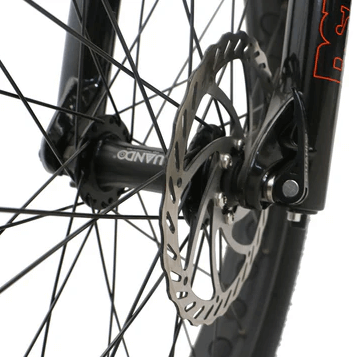

• The dual hydraulic brakes provide efficient and ample force when braking. When riding in harsh conditions, they break swiftly and can be relied upon to ensure your safety.

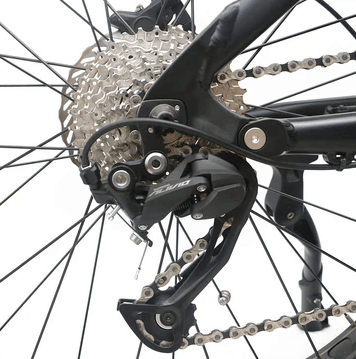

• With the 9 speed freewheel, there is a larger cog for up-hill riding and a smaller cog for high-speed riding. Speed can be easily adjusted with the pedal-assist system.

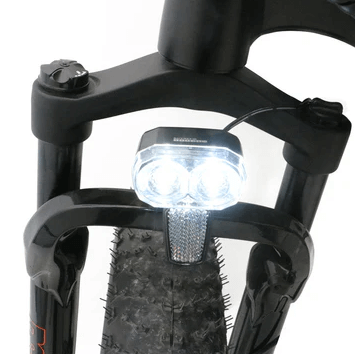

• Light the path with the front light powered by the bike's battery. It can be turned on/off on the handlebar control pad. The headlight is bright enough to make night driving much safer and more enjoyable.

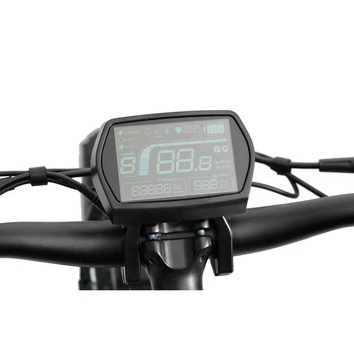

• The center mounted LCD display is bright easy to read even in direct sunlight. With waterproof connectors, it displays battery life, speed and distance, and has push mode - a feature to use in the circumstance of pushing the bike uphill.

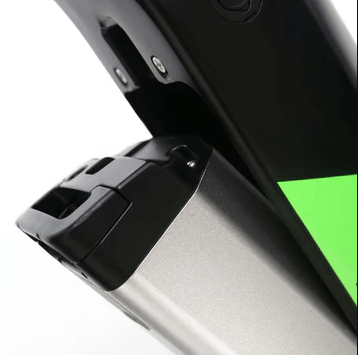

• The removable battery system is a game changer that offers unmatched convenience when re-charging. With a simple twist of a key, you can take out the battery and take it to charge anywhere.
